Bathroom | Accessible

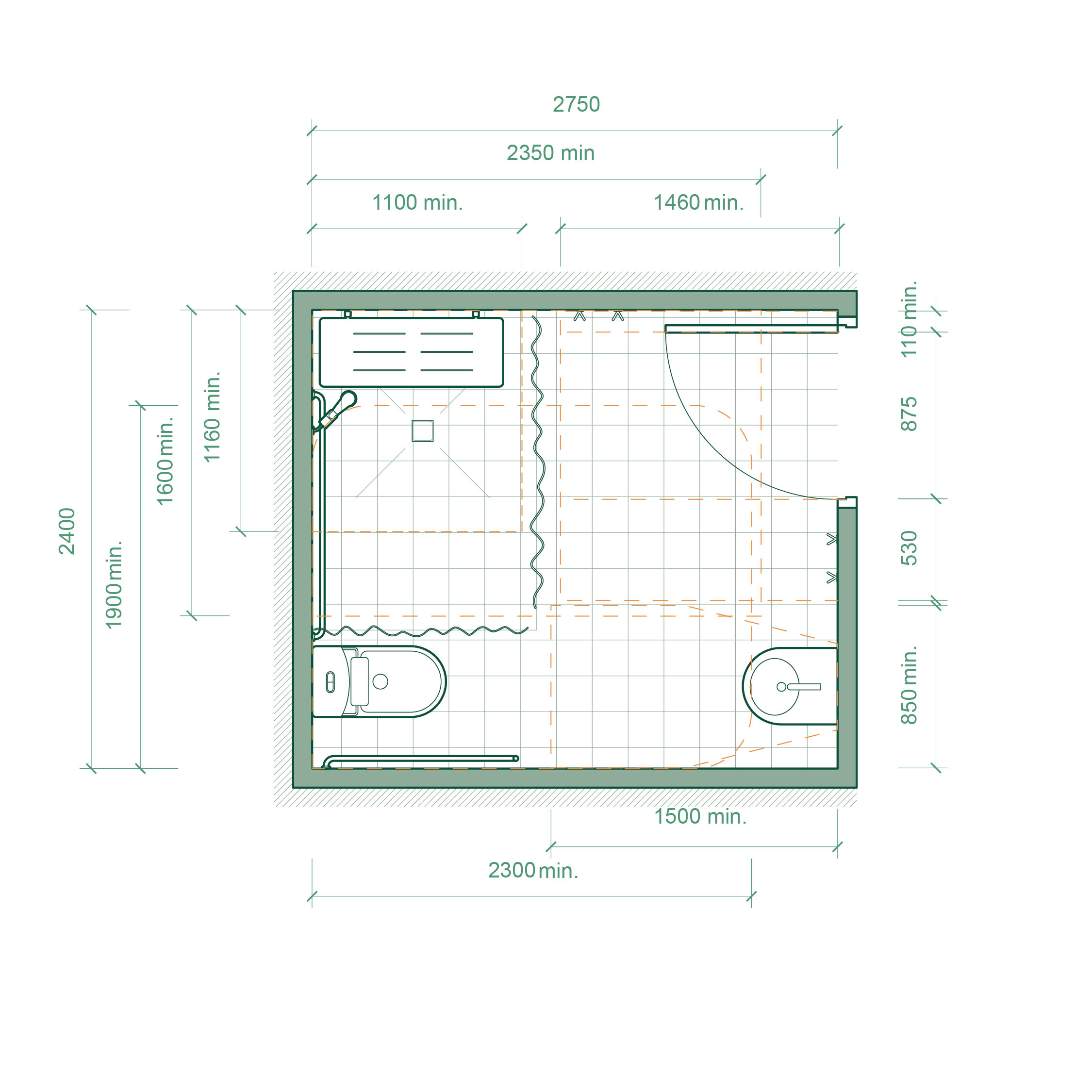

This layout illustrates an accessible bathroom designed in accordance with AS 1428.1: Design for Access and Mobility, featuring a shower, toilet, and basin arranged to meet Australian accessibility standards. The plan demonstrates required circulation spaces, grab rail positions, and clearances for wheelchair maneuverability.

DISCLAIMER: These drawings are based on AS 1428.1 and are intended as a general guide only. Users must verify all dimensions, clearances, and fixture placements against their specific project requirements and ensure compliance with the latest edition of the National Construction Code (NCC) and relevant Australian Standards. It is the user’s responsibility to confirm that the drawings meet all applicable code and accessibility requirements for their intended use.
