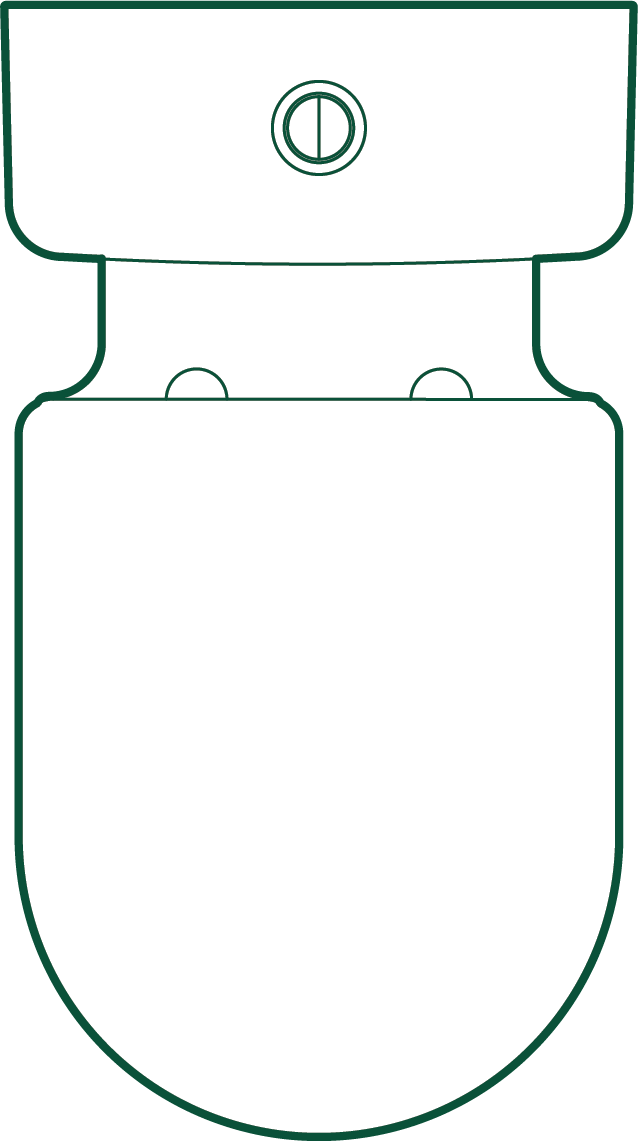

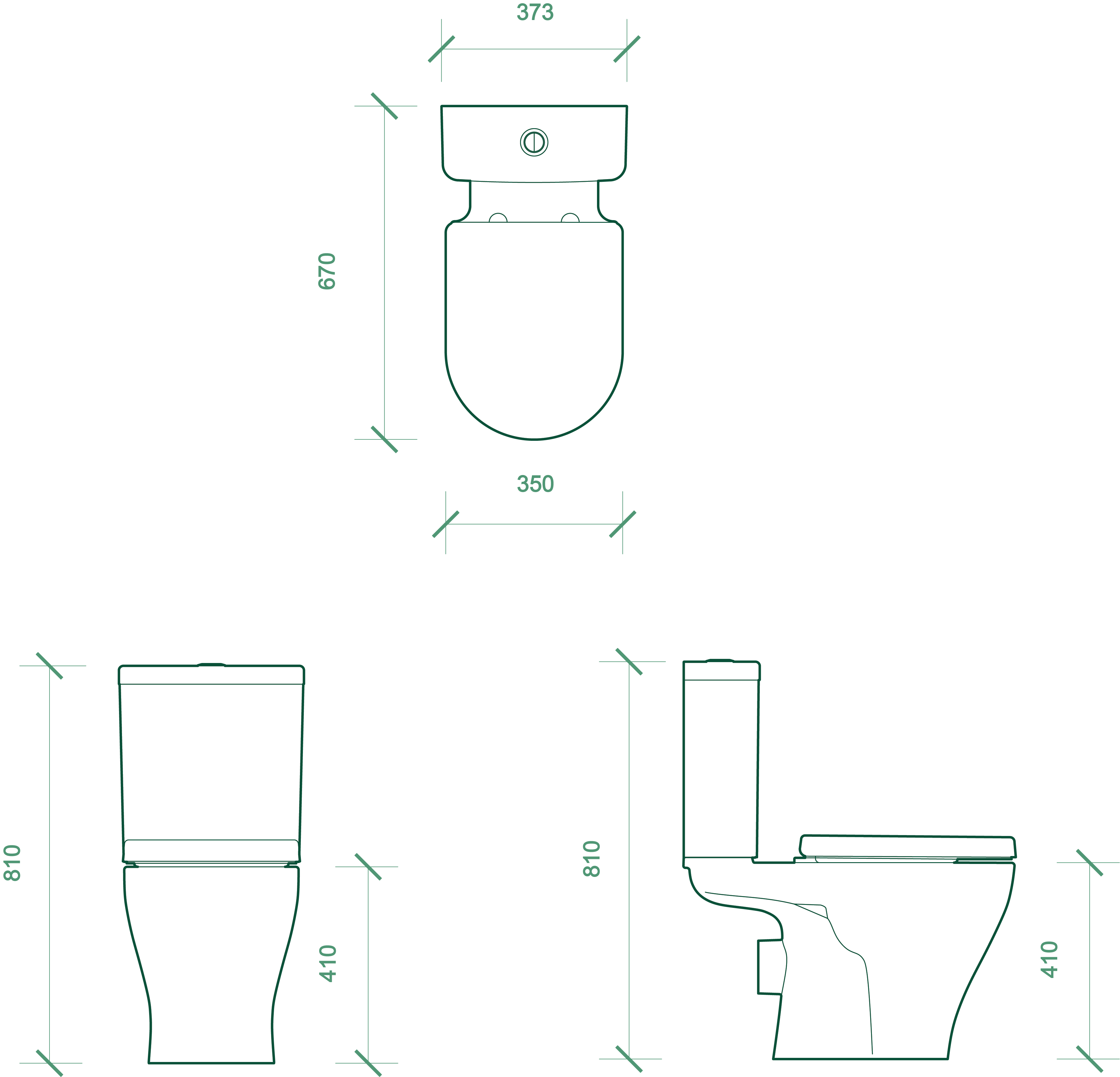

This two-piece toilet suite provides clear plan, front, and side elevations with accurate dimensions for efficient documentation and layout planning. The drawings capture the classic close-coupled design, including the cistern and pan connection, overall height, seat height, and footprint. This set is ideal for residential and commercial bathroom layouts, compliance diagrams, and interior fit-out drawings.
